Punta estrellas para triturar

Steel • Ramallo, Argentina

Originally written in Spanish|Translated to EnglishView original

Showing translated English content

APPLICATION (+1 pts)

APPROVED

Basic Information

Overview

It consists of 36 star tips joined in groups of three that form 12 wheels with a shared axis. They work by counting 13 fixed bars which cause the sinter product that falls into the sintering chain to break and continue the process to bucket conveyors until the long process of the sinter product is completed.

Industry

Steel

Location

Ramallo, Argentina

Component/Workpiece

Punta estrellas para triturar

Business Type

Integra - Workshop

Job Type

Repair

Type of Wear

Abrasion

Impact

Corrosion

Base Metal

Acero al Carbono revestido con Conacrom 1400 ( al saber del usuario)

General Dimensions (inches)

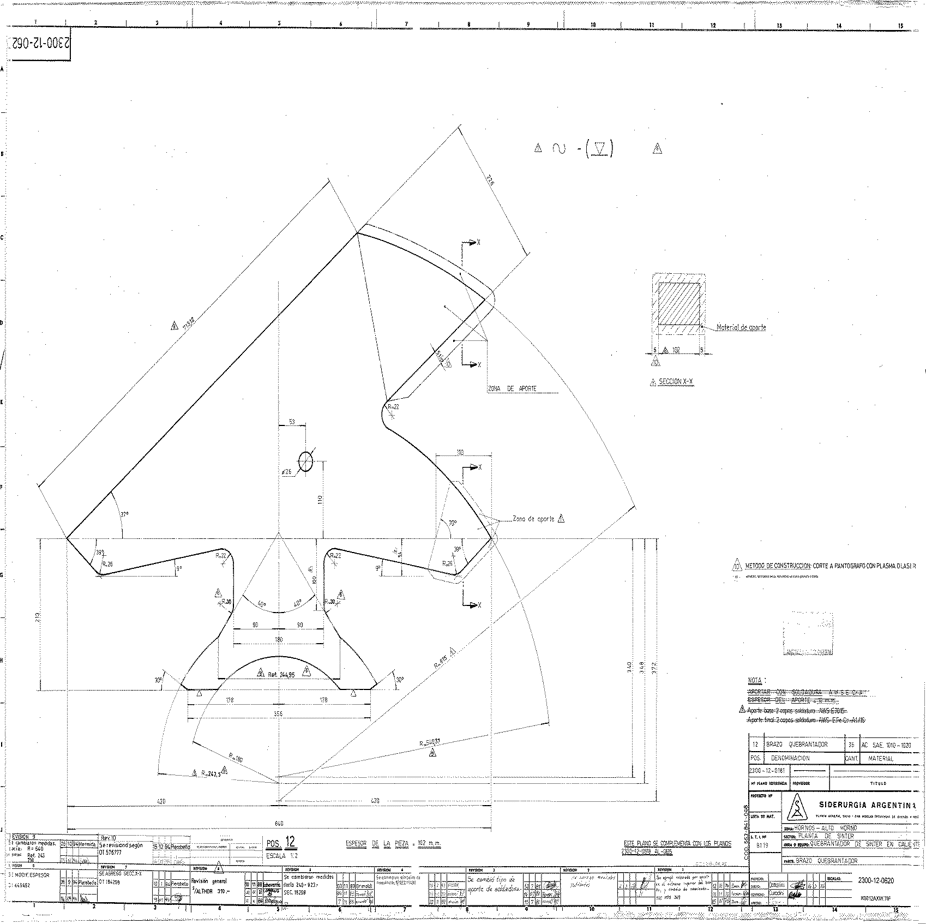

Irregular su forma 110 mm de ancho y figura de 530 x830mm ( ver figuras)

Problem Description

The challenge the customer was facing

Premature wear of each star tip attacked the impact area of the tip head with high hardness materials. Together, the user and WAAR agreed to seek a solution to minimize the wear that also came with changing them, resulting in frequent repairs and monthly plant shutdowns. WAAR proposes a solution by applying its 3D-CARB system; Ternium agrees to test it, and 9 star tips are purchased, which are placed in the most delicate positions 6-7 and 8. Over time, a significant improvement is observed.

Previous Service Life

12w

Competitor

talleres propio

Welding Alloys Solution

How WA solved the challenge

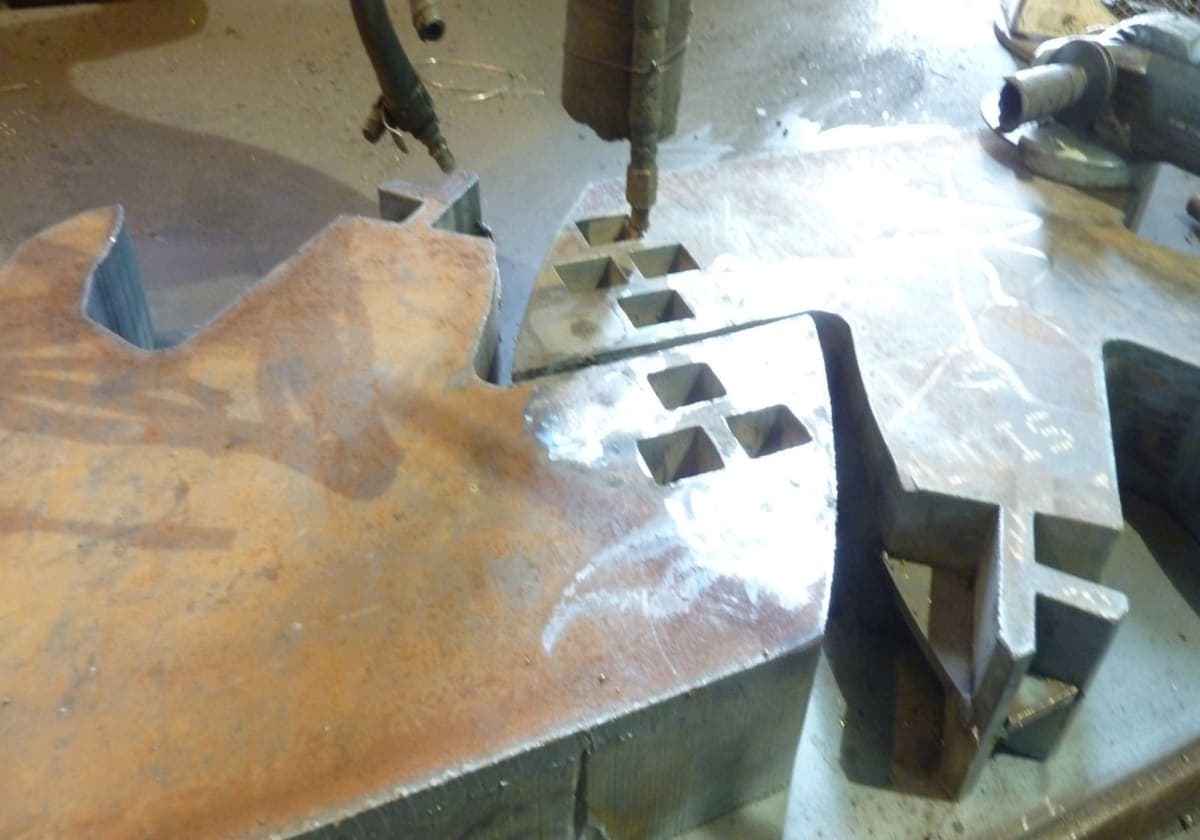

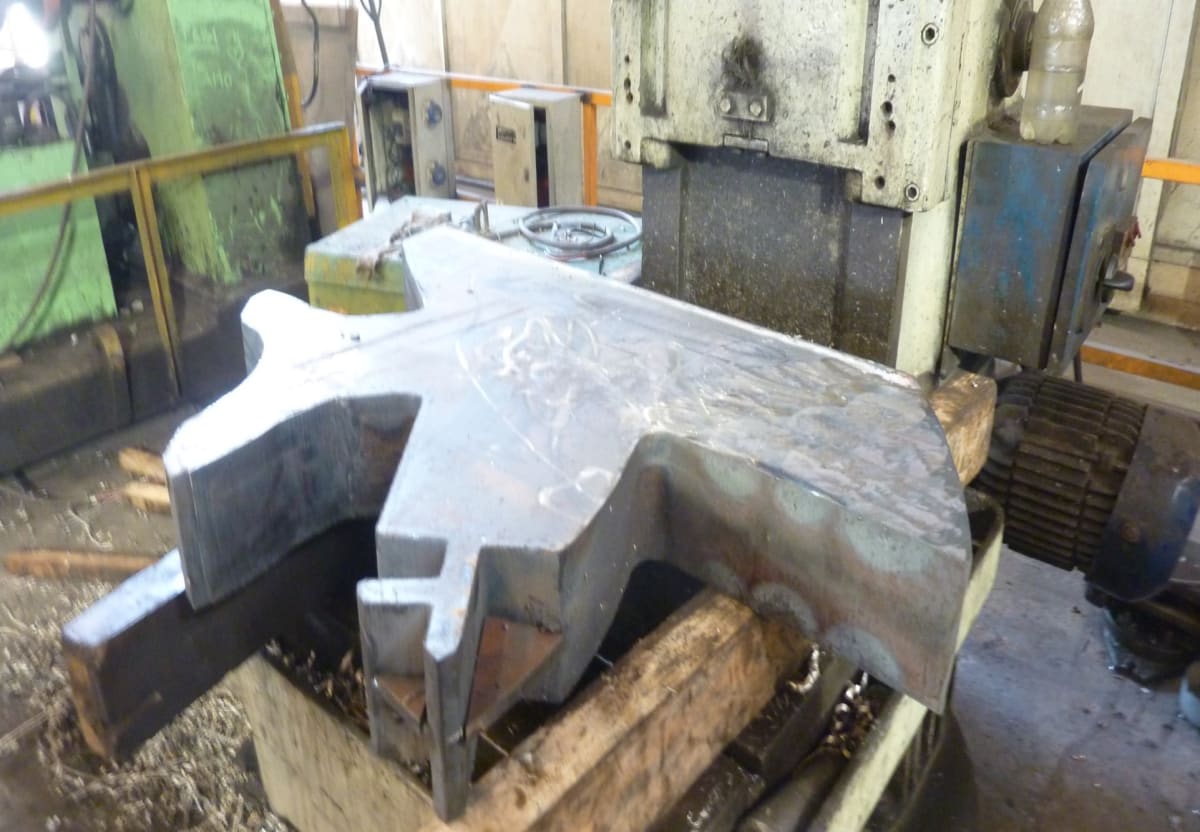

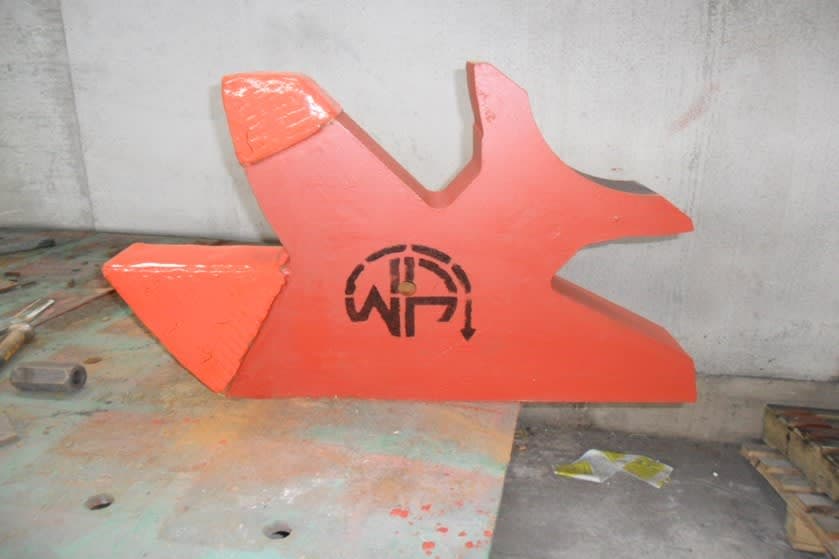

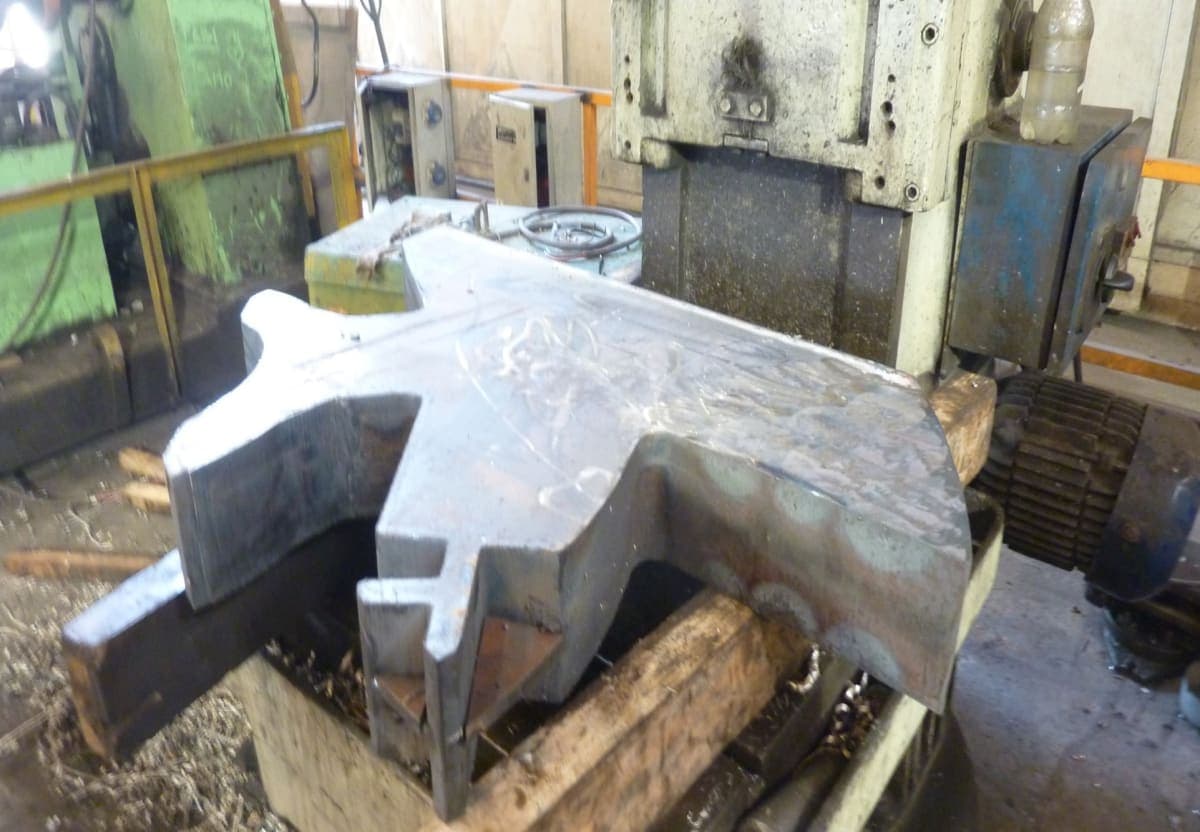

WELDING ALLOYS ARGENTINA provided a solution to the problem by building on a material of ASTM-36 mild steel with its application called 3 D-CARB, contributing its HARDFACE CNV-O tubular wires in Ø 2.4 / 3.2 mm. Liquid pools were made with this material and once poured, filler was applied over the entire surface of the tillage tool. With this system and the quality of the wires, it solved a problem of utmost importance for operational continuity. Since the year 2000, Ternium-Siderar has been continuously purchasing a complete set of 36 pieces from WAARG.

Product Category

Integra Services

Product Description

Hardface CNV-O en Ø 3,2 mm

Job Duration

14w

Technical Advantages

The solution provided by WAArg. was remarkable in all aspects. The useful life went from 12 weeks to 52 weeks, which notably influenced the interventions for repairs. And the useful time of the equipment on this issue improved substantially, leaving the monthly equipment repairs on this topic. The wear occurred slowly, and since the year 2000, welding has been providing a complete set annually.

Service Life

52w
