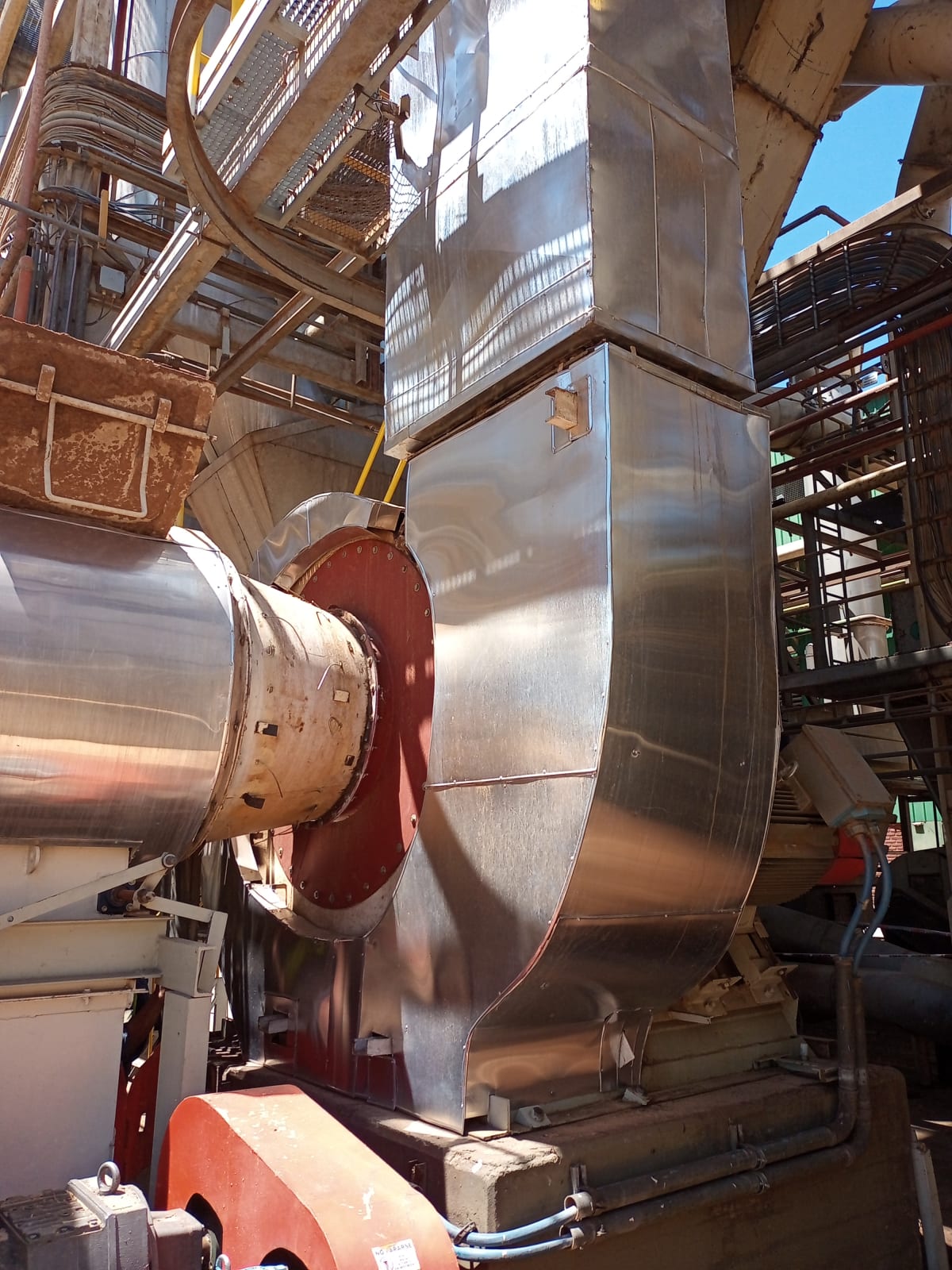

Rotor and volute of dryer fan

MDF Wood • concordia, AR

APPLICATION (+1 pts)

APPROVED

Basic Information

Overview

Manufacturing of rotor and volute of dryer fan, rotor built with blades in HardPlate 100 (6+4) and casing with shielding in HardPlate 100 (6+4) throughout the envelope

Industry

MDF Wood

Location

concordia, AR

Component/Workpiece

Rotor and volute of dryer fan

Business Type

Integra - Workshop

Job Type

New

Type of Wear

Abrasion

Base Metal

carbon steel

General Dimensions (mm)

Varias

Problem Description

The challenge the customer was facing

Severe abrasion wear due to the silica contained in the bark of the wood chips transported by this fan

Previous Service Life

4mo

Welding Alloys Solution

How WA solved the challenge

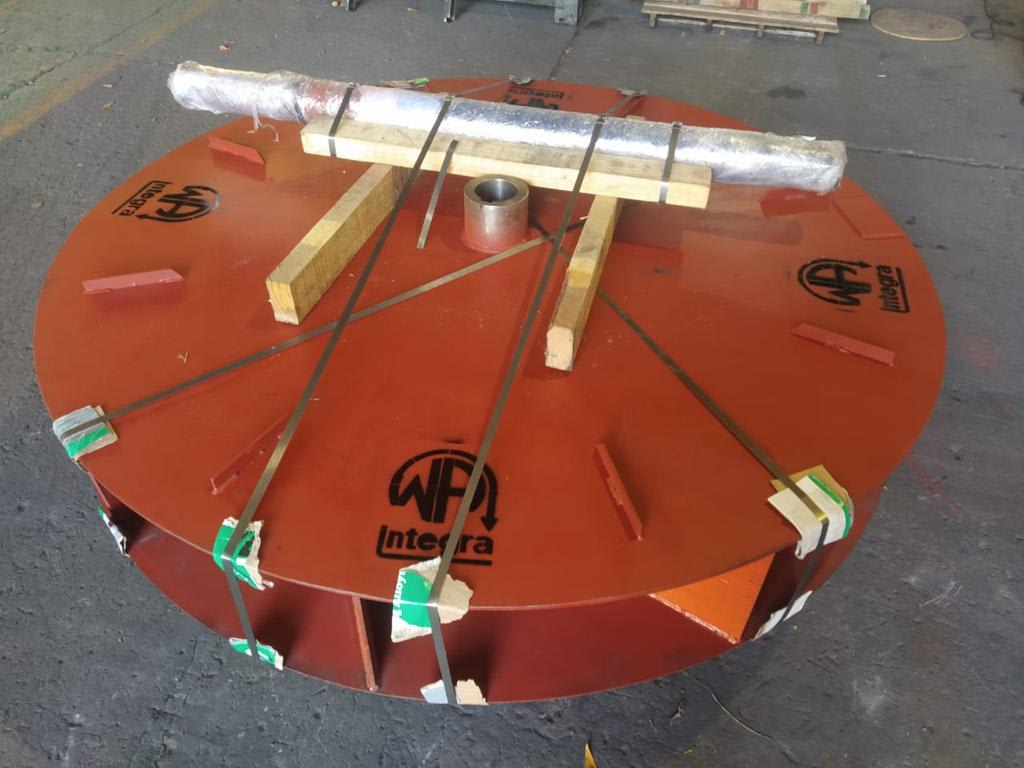

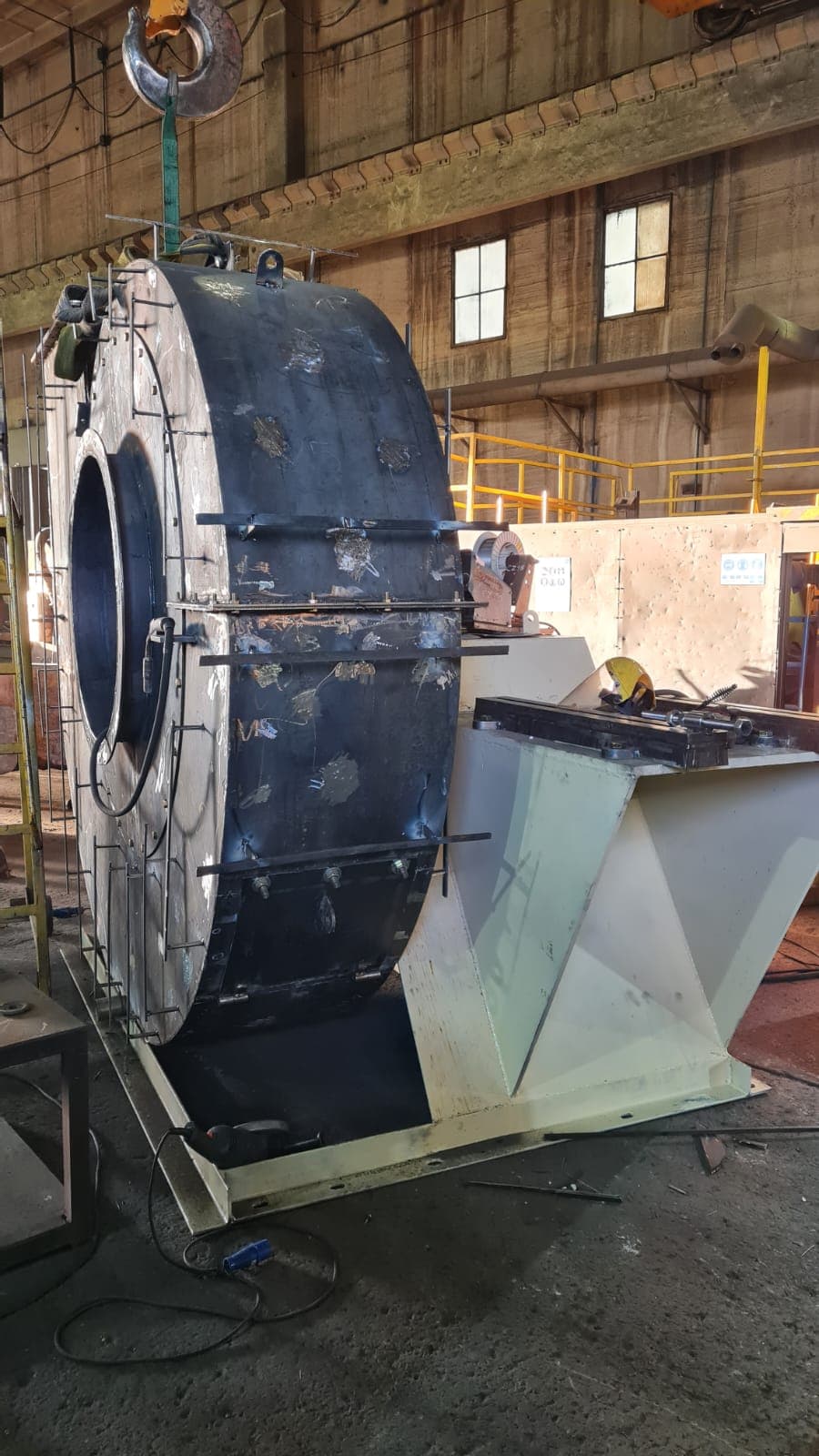

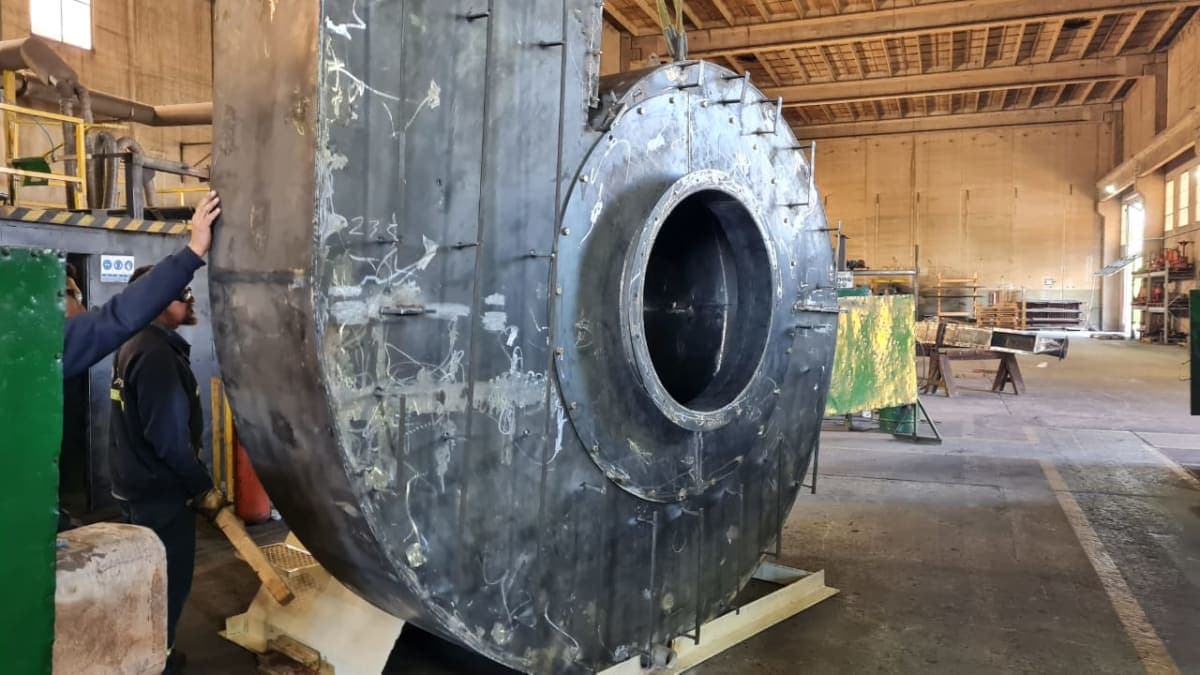

Dimensional survey and drawing of the housing were performed, as the client did not have them. Shielding was applied using HardPlate 100 (6+4) to the entire housing envelope, and rotor blades were fabricated from HardPlate 100 (6+4). The intake port was also constructed using HardPlate 100 (6+4).

Product Category

Composite Wear Plates

Product Name

Hardplate 100

Thickness

6+4

Job Duration

2mo

Technical Advantages

A complete solution was achieved by first conducting a dimensional survey of the fan housing and subsequently creating a drawing. Bimetallic plates were then applied to the wear areas, quadrupling the lifespan of the housing and preventing fire hazards caused by the inclusion of wood in worn areas and subsequent ignition.
